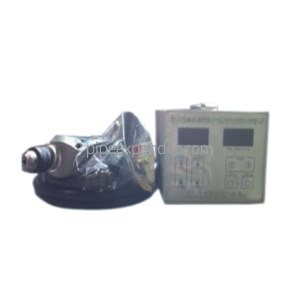

DZJ series 300w electric tube expander tool

DZJ series electric tube expander

DZJ series electric tube expansion machine is a new generation of convenient and fast electric tube expansion machine designed and developed by our company to meet the needs of various condensers, oil coolers, heaters and heat exchangers.

DZJ-I electric tube expansion machine parameters

Power selection of the expanded pipe size mm expansion force set value A expansion rate ZL rated voltage of the machine

Pipe diameter wall thickness δ

300W copper, aluminum, titanium stainless steel Ø10 below 0.5-1.0 1.80-2.00 6%-8%

AC220V±5%  50Hz

1.0-1.5 2.00-2.30

400W Copper, aluminum, titanium stainless steel Ø10 -- 15 0.5 -- 1.0 2.00 -- 2.50 6%-8%

1.0-1.5 2.50-3.00

600W Copper, aluminum, titanium stainless steel ø15-32 0.5-1.0 2.00-2.50 6%-8%

1.0-1.5 2.50-3.20

1000W Aluminum, carbon steel, stainless steel ø10-46 2.5-4.0 3.00-4.50 6%-8%
