φ13mm Single bead flanging pipe expander

φ13mm Single bead flanging tube expander

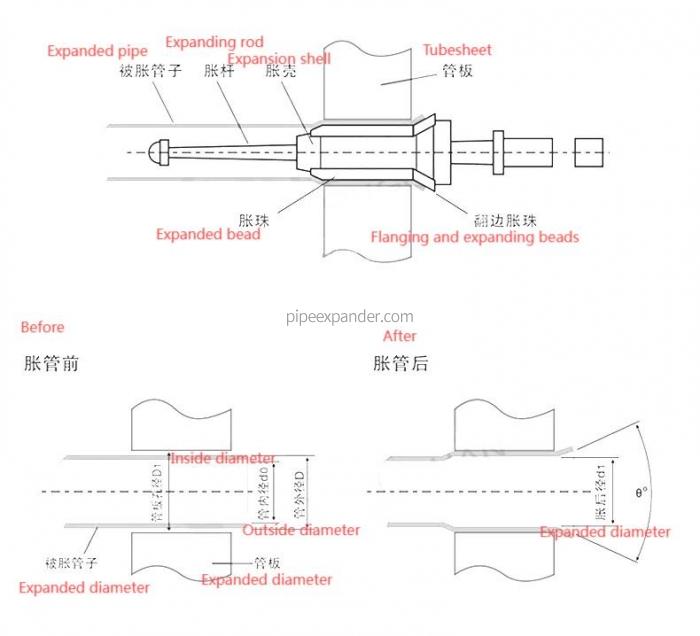

Flanging tube expander makes the tube tightly bonded with the tube plate after expansion, and the tube mouth is flanged at 12 degrees to 15 degrees. It is mainly used for the tube expansion on the side of the water inlet of the container to reduce the erosion and corrosion of the tube mouth by the water flow.

Flanging tube expander makes the tube tightly bonded with the tube plate after expansion, and the tube mouth is flanged at 12 degrees to 15 degrees. It is mainly used for the tube expansion on the side of the water inlet of the container to reduce the erosion and corrosion of the tube mouth by the water flow.

Flanging type has a single bead, double bead, three bead points, the more flanging bead, the more uniform the force, the less friction, and can avoid the expansion of the tube wall and expansion of the tube friction.

Most of the flanged types need to be ordered in advance. Available in limited quantities in limited specifications only.

Note:

(1) Can be matched with the appropriate electric tube expansion machine to do power.

(2) The product is a wear and tear part.

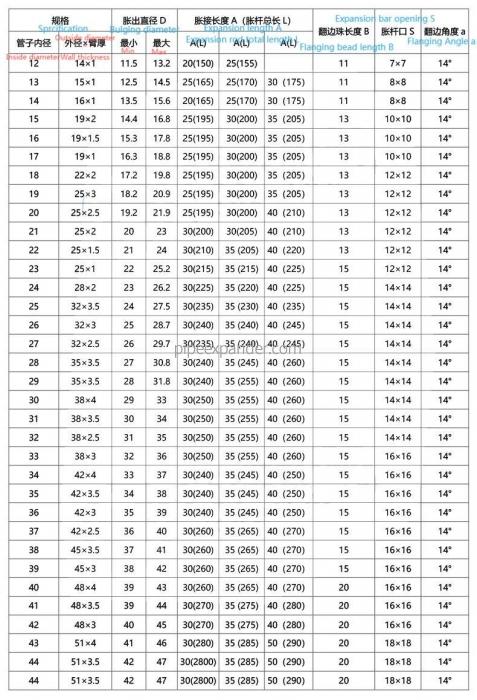

(3) The customer needs to inform the outer diameter of the tube × the thickness of the tube wall × the thickness of the tube plate (depth of expansion)

Widely used in refrigeration, petrochemical, electric power, shipbuilding, metallurgy and other industries of condenser, cooler, heat exchanger, boiler and other pressure vessel manufacturing and maintenance. It can expand the pipes of copper, aluminum, titanium, iron, stainless steel and other materials.
