Functional Description

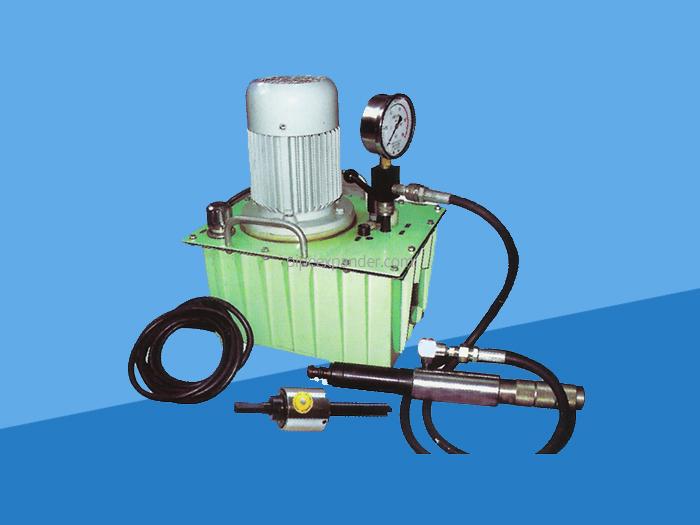

The tube cutter is inserted into the tube bundle from outside the tube sheet (extending beyond the tube sheet) to sever the old tube (Note: Only one end needs to be cut). The pulling gun is then inserted into the tube, with its sleeve flush against the tube sheet. When the pump unit is activated and pressurized, the gripping jaws of the pulling gun engage the tube wall and extract the tube.
After pressure is released from the pump unit, the gripping jaws retract and automatically release the tube section.
Technical Specifications
| Tube Material to be Extracted | Copper, Titanium, Aluminum |
| Tube Diameter to be Extracted (mm) | φ15~φ20 |
| Tube Wall Thickness (mm) | 0.5~1.5 |
| Rated Pressure (kg) | 5600 |
| Extraction Stroke (mm) | 60 |
| Pump Station Pressure (MPa) | 63 |
| Rated Voltage (V) | 380 |
Motor Power (kW) | 0.75 |
Tube Extraction Speed | 2–3 seconds per tube |
| Pulling Gun Weight (kg) | 2.5 |
Note:
The extractable tube diameter range of Ø15–28mm indicates that all tubes within this range can be extracted using this machine. In practice, each gripping jaw assembly is designed for a single tube size. When encountering tubes of different specifications, simply replace the gripping jaw assembly with a corresponding one and use the appropriately sized tube cutter.
