XPZ-4 Elephant trunk tube expander machine

XPZ-4 Elephant trunk tube expander machine

Overview of elephant trunk tube expansion machine

Elephant nose tube expansion machine is used to expand the heat exchanger, condenser and other loose heat pipe and fix it on the tube plate device. The whole working process of the whole machine is fully automatic controlled by the controller, which has high expansion precision, large expansion torque, stable performance and easy operation. In addition, the reaction of the expansion tube head is offset by a special torque balance table, so that the operator only needs to gently support the expansion tube handle of the drive shaft, which greatly reduces the labor intensity.

Working principle

In the process of tube expansion, with the continuous expansion of the tube expander, the rotation provided by the tube expander also increases. When the comparator is compared with the pre-set tube expansion value, the controller controls the motor to automatically stop running through the delay interval of the delay circuit when reaching the set value, the controller automatically drives the tube expander to reverse counterclockwise, so that the tube expander starts to release until it stops. Then follow the set pause time. The controller then drives the expansion machine to carry out the next expansion process. You only need to turn on the forward button once.

Complete assembly

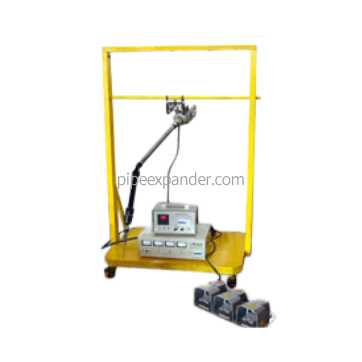

One countertorque balancing frame, one special expansion tube head, one control instrument, one regulator, one telescopic transmission shaft (expansion tube universal joint), and three foot switches.
