PKJ-300 fast flattening machine

PKJ-300 fast flattening machine

ⅠSafety precautions:

1. Before use, read the safe operation instructions carefully, and use the tool according to the instructions in the operation content to ensure

Safety in use.

2. Do not use this tool in places where there is a risk of explosion.

3. It is strictly prohibited to use a gas other than air as a gas source to use the tool to avoid the risk of explosion.

4. When no utility tools, replacement parts or maintenance, please turn off the air source and connect the tool and air source

Pull out the head.

5. Tools and accessories are prohibited to change themselves, if the use of different parts or parts not manufactured by the company, it is not

Be responsible for warranty.

6. When operating tools, repairing tools or replacing tool accessories, please wear impact-resistant eye masks and masks at any time.

Even small projectiles can hurt the eyes.

7. High volume may cause hearing injury. Please wear standard earmuffs according to local regulations

Protect user security.

8. Please do not directly contact the rotating transmission shaft and accessories to avoid injury, and wear gloves to protect your hands.

Ⅱ. Air supply:

1. The winding of the air pressure pipeline will cause serious danger. Please check the air pressure pipeline at any time and place it in the appropriate position

Buy.

2. All tools, accessories, and air pressure pipelines must meet the requirements of air pressure and volume.

3. The air supplied to the tool must be clean and dry, and the moisture in the air will cause the metal inside the tool to grow

Rust caused damage.

4. When operating the tool, the maximum pressure at the air inlet should not exceed 90psi(6.3kg/cm2).

Ⅲ. Oil filling and lubrication:

1. Please use the oiler to lubricate the tool motor group, and adjust the flow rate to 2 drops of oil per minute. Gas should be used

Special oil for moving tools (SEA#10-20 lubricating oil)

2. If the oiler is not used, 5cc of air tool oil should be injected from the pipe joint per shift (4 hours)

To lubricate

3. Every day, the tool should be injected with 5cc of special tool oil from the pipe joint, and operate for 1-2 seconds to remove the foreign body

Discharge, and then put the tool in a clean place to avoid damage to parts caused by foreign matter blowing into or invading.

4. Inject a small amount of lubricating oil daily to lubricate the transmission shaft and reduce wear.

5. Lubrication maintenance of tools is necessary, and failure to maintain lubrication on time will lead to reduced torque and rapid tool

Reduced tool life, this situation will not be covered by the warranty.

6. Avoid using corrosive oil to avoid damaging rubber oil seals and bakelite blades and other parts.

Ⅳ Equipment operation precautions:

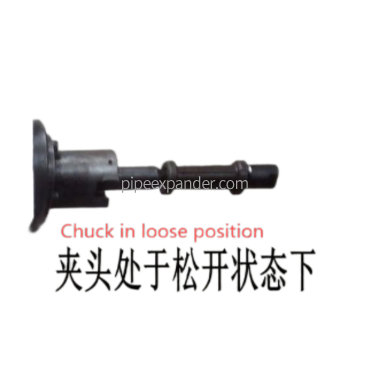

1. Make the top tightening nut loose before ventilation, so as to avoid the elastic chuck in the state of empty expansion after ventilation, so that the chuck is damaged. Before or after using the tool, the elastic positioning chuck should be removed in time to avoid damage to the elastic positioning chuck caused by cylinder action.

2. Each pipe size corresponds to an elastic positioning chuck. Please select an appropriate elastic positioning chuck.

3. After positioning the pipe port, pay attention to the gap of more than 1 mm between the pipe port and the blade to avoid damage to the blade and the device due to instantaneous rotation.

4. The gas pipe configured on the machine or of the same specifications must be selected to avoid different speed caused by gas flow.

5. When the pipe end is uneven, please feed slowly. After the blade is in full contact with the pipe mouth, it can be quickly pushed forward, otherwise it will cause the bump caused by the uneven pipe end
