Functional Description

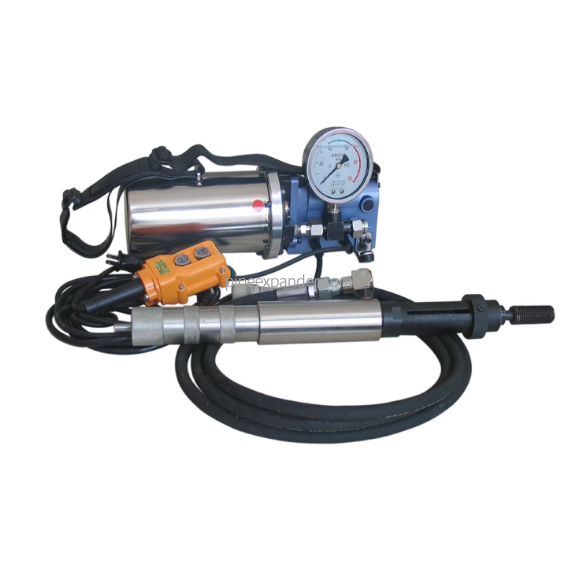

Insert the tube cutter through the tube sheet into the tube bundle to be extracted (extending beyond the tube sheet) and sever the old tube (Note: Only one end needs to be cut). Select the corresponding extraction head based on the tube specifications and thread it in using a ratchet wrench. Align the pulling gun with the extraction head, then start the pump unit motor and apply pressure. The pulling gun will grip the extraction head and extract the tube.
After releasing pressure from the pump unit, use a dedicated tube removal wrench to detach the extracted tube from the pulling head. Repeat this process for subsequent operations.
Technical Specifications
| Tube Material to be Extracted | Copper, Titanium, Aluminum |
| Tube Diameter to be Extracted (mm) | φ21~φ28 |
| Tube Wall Thickness (mm) | 0.5~1.5 |
| Rated Pressure (kg) | 6000 |
| Extraction Stroke (mm) | 60 |
| Pump Station Pressure (MPa) | 63 |
| Rated Voltage (V) | 380 |
Motor Power (kW) | 0.75 |
| Pulling Gun Weight (kg) | 2.5 |
Note:
The extractable tube diameter range of Ø15–28mm indicates this machine's capability to extract tubes within this full spectrum. During actual operation, always match the tube specifications with the corresponding extraction head and the appropriately sized tube cutter.
